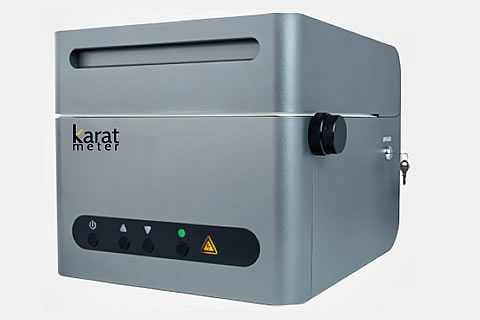

Karatmeter G series

$25,500.00 Sale Save

Only 3 left in stock

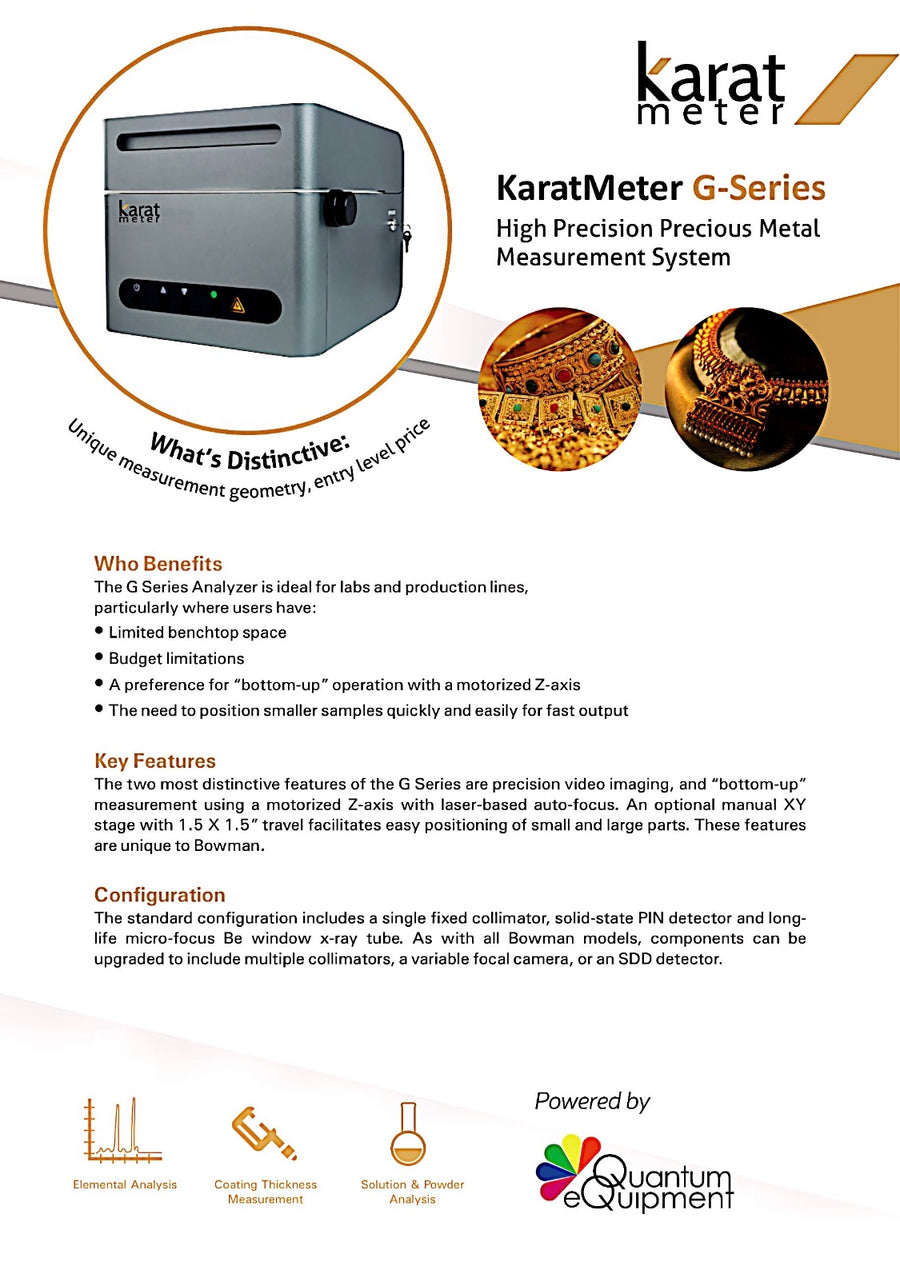

  • Super fast operations for any lab, quick change of jewelry on tray made possible.
  • Highest and most accurate detector (SSD) available as an optional extra
  • Consumption of very little table space

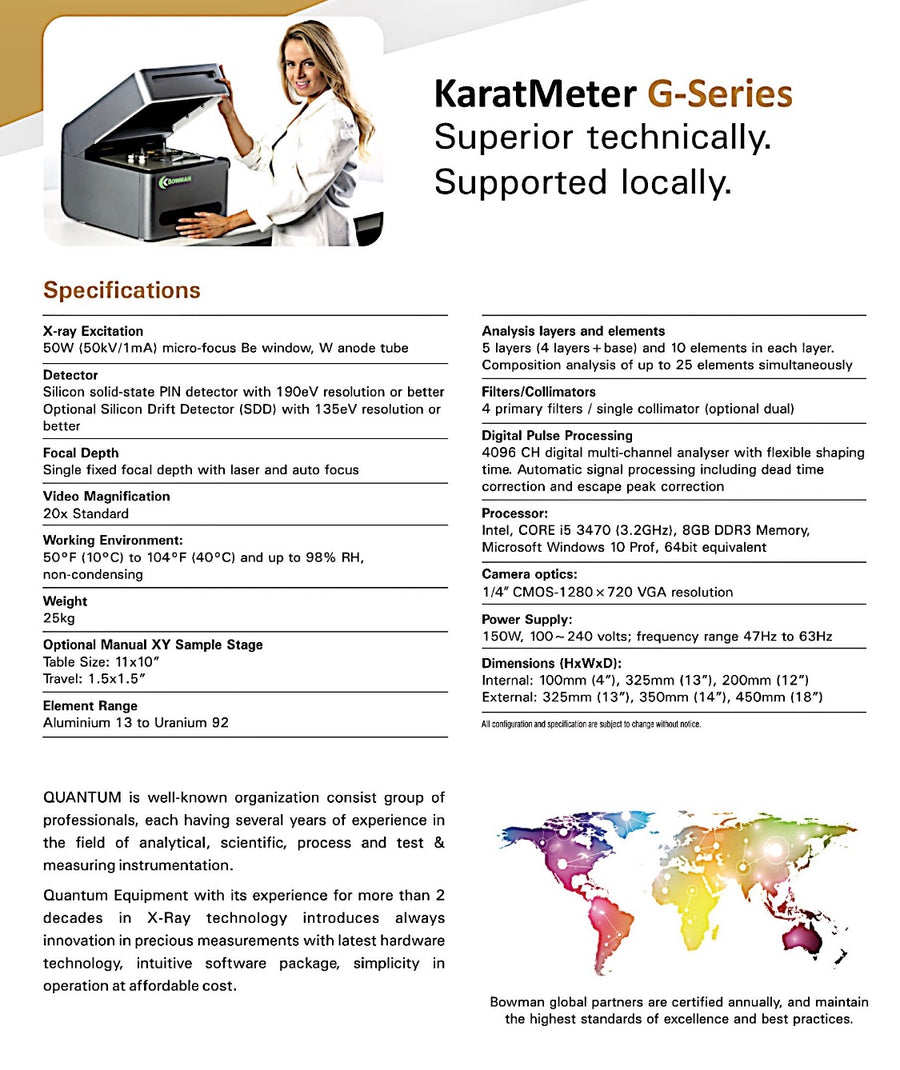

  • Detector : Silicon solid state pin with 190eV resolution OR BETTER OPTIONAL Silicon Drift Detector (SSD) with 135eV resolution or better.
  • Element Range : from Aluminium (13) to Uranium (92)
  • Optional manual XY sample stage : Table size : 11 x 10"  Travel : 1.5 X 1.5"
  • Video magnification : 20X
  • Focal Depth : Single fixed with laser and auto focus
  • X ray Excitation : 50W (50kV/1mA micro focus Be window, W anode tube
  • Analysis layers with elements : 5 layers (4 layers + base) with 10 elements in each layer. Composition analysis of upto 25 elements simultaneously.
  • Filters / Collimators : 4 primary filters / single collimator (optional dual)
  • Digital pulse processing : 4096 CH digital multi channel analyser with flexible shaping time. Automatic signal processing including dead time correction and escape peak correction
  • Processor : Intel core i5 3470 (3.2GHz), 8 GB DDR3 Memory, Microsoft windows 10 Prof, 64bit equvivalent
  • Camera optics : 1/4" CMOS - 1280 X 720 VGA resolution
  • Power supply : 150W, 100-240 volts; frequency range 47Hz to 63Hz
  • Dimensions : Internal : 100mm (4"), 325mm (13"), 200mm (12") External: 325mm (13"), 350mm (14"), 450mm (18")
